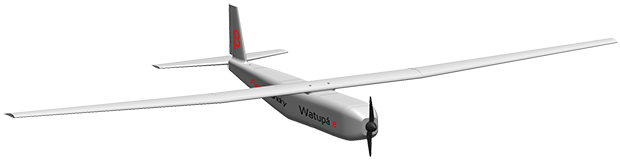

Manufactured since 2014, Watupá-e 2022 is now fully Mil compliant, with a new aramide reinforced highly rugged, resilient airframe, with very low detection signature, and a new (optional) low-noise engine with a quasi-stealth propeller (patent pending).
The new 2022 airframe design has:
- A 73% increase in payload capacity (volume and weight), exceeding any competitor in its category.
- Higher endurance of up to 6 hours.
- Sturdy structure for deep stall belly-landing on the most rugged surfaces.
The reliability and simple logistics of Watupá-e makes it the best platform for mobile operations in harsh environmental conditions. This airframe can carry up to 2.5kg of payload, in a 700mm x 200mm x 150mm compartment.
-
A successfully tested gimbal with EO/IR geolocking & geotracking, and laser rangefinder, or
A photogrammetry Malta-cross 5-camera integrated setup, or
A Lidar profiler with integrated INS/GPS L1/L2/L5 and optional Sony A5100 camera. Lidar accuracy is ≤10cm@110m AGL, detection range of 90m@10%, 64-beam laser lines, max. range of 450m@50%, range accuracy of 2 cm (1σ @ 20 m), Triple echo 720,000 Points/Sec, POS unit at 200Hz, with Pitch /Roll Accuracy 0.015°, Heading Accuracy 0.040°, and Position Accuracy ≤0.05m.
