TEXO TL: Rugged tactical logistics VTOL for naval and land forces

Texo TL (Tactical Logistics)

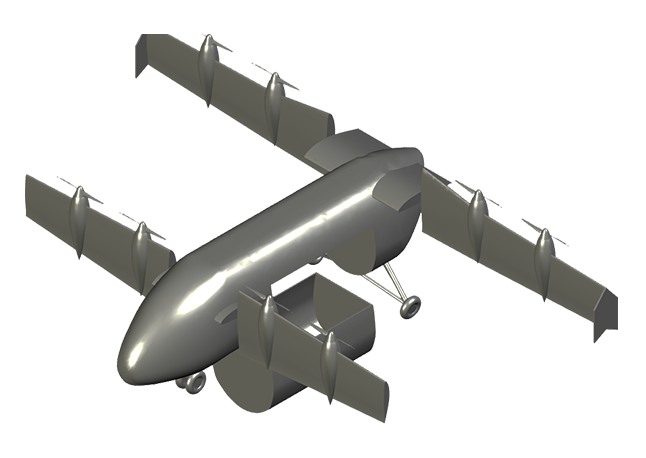

Texo TL unloaded

Texo’s architecture enables the use of the same operational doctrine for all its variants, no matter the size. Our first operational version is a 50kg MTOW aiframe for ISR and IMSI catching in urban operations

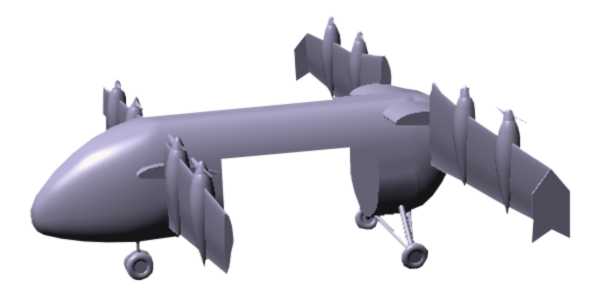

Texo TL Cargo Bay

A 650kg MTOW, tactical logistics aircraft with foldable wings for easy storage.

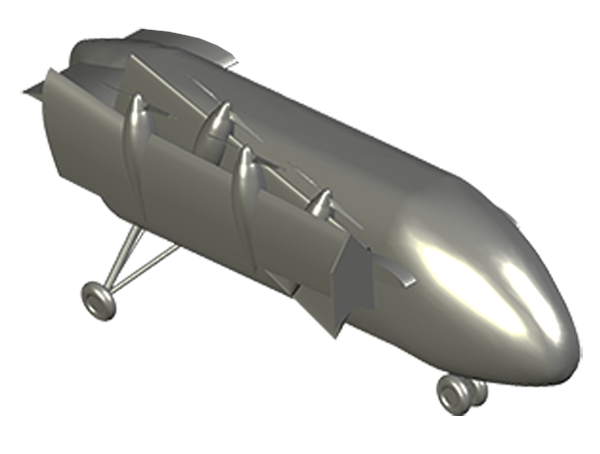

Texo Naval configuration with folded wings ready for storage

This concept originated from a recent demand from the Oceania Region. During the concept design for the proposal, several operational hurdles were solved, and a consolidated version was produced.

We adopted the codename Unmanned Tactical Logistics (TL) Platform for the new architecture for high-risk land and sea resupply operations. The Project is entering the detailing phase aiming at manufacturing the first prototype for structural tests by March, 2023.

The first prototype for flight tests will be produced by the end of 2023.

Specifications
Payload  124 [kg]
MTOW 650 [kg]
Empty Weight 403 [kg]
Range 358 [km]
Endurance 4 [hour]
Wing Area 8 [m^2}
Wing Load  81 [m^2/kg]
Cruise speed  151 [km/h]
Stall Speed   124 [km/h]

Level Wing
Rear wing  10 [m]
Front Wing 9.0 [m]
Height  wings level 2.37 [m]
Height 90 degree wing 2.95 [m]

Fuselage
Length 6.66 [m]
Width  1.4 [m]
Heigth 1.34 [m]

Payload Bay
Height 0.754 [m]
Width  1.4 [m]
Length 2.3 [m]

Folded Wing
Width  3.15 [m]
Height 3.13 [m]
Endurance [hrs] Fuel [kg] Fuel [l] Range [km] Payload [kg]
1 41 52 119 206.1
2 70 89 203 177.3
3 97 124 282 150.1
4 123 157 358 124.3
5 147 189 429 99.7
6 171 219 498 76.1
7 194 248 565 53.3
8 216 277 629 31.3
